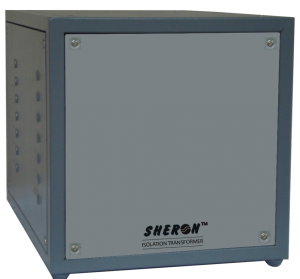

Isolation Transformers

SHERON Isolation transformers can be used to protect people against the dangers of electric shocks. Isolation transformers can block transmission of DC signals from one circuit to the other, but allow AC signals to pass. They will also block interference caused by ground loops. Isolation transformers with electrostatic shields are used for power supplies for sensitive equipment such as medical equipment, computers or precision laboratory measurement instruments.

ADVANTAGES:

APPLICATIONS :

Medical Instrumentation,
Digital Communication Systems,
Laboratory Instruments,Laboratory Instruments,
Cnc Machines, Audio
Video Recording Equipment,
Supply Of Variable-Frequency (Variable Speed) Motor Drives, Et Cetera.

Secondary neutral to ground bonding virtually eliminates common mode noise, providing an isolated neutral ground reference for sensitive equipment.

TECHNICAL SPECIFICATIONS FOR SHERON ISOLATION TRANSFORMERS
Primary Voltage :	230 VAC, 1 Phase
Secondary Voltage :	230 VAC, 1 Phase
Ratio :	1:1
Regulation :	2-4 %
Di-electric Strength :	2500 volt for 120 Sec
Class of Insulation :	F
Ambient Temp :	0-45 degree
Duty cycle :	Continuous
Losses :	3%
Output Voltage Regulation :	+/-1 %
Type of Coolin :	Air cooled
Power Factor :	0.8
Operating Frequency :	50 Hz +/- 3%
Wave form Distortion :	NIL .
Efficiency :	97%
